Yokogawa WT5000 Precision Power Analyzer Advanced Computation Function

Name: Yokogawa WT5000 Precision Power Analyzer Advanced Computation Function
Brand: Yokogawa
Price: 1 USD

Quality Yokogawa WT5000 Precision Power Analyzer Advanced Computation Function for sale

Brand Name : Yokogawa

Model Number : WT5000

Place of Origin : Japan

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : in stock

Product name : Precision Power Analyzer

Basic Accuracy : 0.02%

Power Bandwidth : 1MHz

Store Function : 50 ms Data Storing Interval

Condition : Pre-Owned

Functions : Tested, in Full Working Conditions

Contact Now

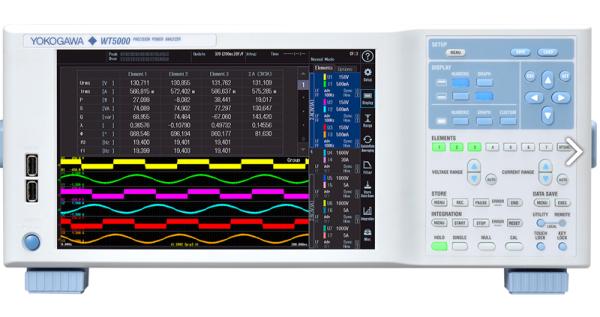

Yokogawa WT5000 Precision Power Analyzer

Description of Yokogawa WT5000

The WT5000 is the world’s most accurate precision power analyzer with a basic power accuracy of ±0.03%. Its accuracy specifications are guaranteed from 1% to 130% of the selected voltage and current ranges. With minimum influence of low-power factor (0.02% of apparent power) the unit is also accurate at large phase shifts and frequencies.

• AC power accuracy: 0.01% of reading + 0.02% of range

• DC power accuracy: 0.02% of reading + 0.05% of range

• 10 MS/s 18 bit ADC

Features of Yokogawa WT5000:

Basic Accuracy: 0.01% of reading
Basic Power Accuracy: 0.02% of reading
Store Function: 50 ms Data Storing Interval
Interface: GP-IB, Ethernet, RS-232 and USB
IEC61000-3-2: Harmonic Measurement
Simultaneous Measurement with 2 Units (8 Power Input Elements)
IEC61000-3-3: Voltage Fluctuation/ Flicker Measurement
Good Readability: The Large, 8.4-inch LCD and the Range Indicator LEDs
Advanced Computation Function: Waveform Computation, FFT Analysis, Waveform sampling Data Saving

Reliable Today, Ready for Tomorrow of WT5000

Make measurements you can trust with a guaranteed accuracy of *0.03%
10MS/s, 1MHz power bandwidth, 18 bit resolution enabled by Yokogawa isoPRO™ fiber optic isolation technology
Simultaneously analyze 7 phases with one chassis, producing over 1000 power parameters real-time
Precision current measurement guaranteed by innovative symmetric coaxial shunt design
*basic power accuracy
Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis

Innovate with Precision, Flexibility and Confidence of WT5000

Modular architecture with 7 user swappable and reconfigurable input elements
Follows frequency fluctuations in input signals by auto update mode
Up to 10ms data update, up to 50ms data update when using data streaming
Synchronize multiple chassis for large multi-phase systems
Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis
Isolate and measure harmonic losses with configurable advanced filtering for simultaneous wideband and harmonic power analysis
**can be configured as auxiliary inputs
For motors and generators up to 4 speed and torque inputs** can be used measuring total system efficiency
High-accuracy element, built-in DC power supply, enables both easy wiring and reliable high-precision, large-current measurements

List of Options of WT5000

/M1	32GB Built-in Memory
/MTR1	Motor Evaluation 1
/DA20*	20 CH D/A Output
/MTR2	Motor Evalualion 2
/DS	Data streaming
/G7	lEC Harmonics/Flicker Measurement
760901	30 A High Accuracy Element
760902	5 A High Accuracy Element
760903	Current Sensor Element
